Diary Blog - Term 3 - Week 4

Week4

This week i finished off glue my box together. The box turned out well and seemed very sturdy. On top of gluing my box, I helped out many other people finish their box of and help glue them together.

Problem In-counted: Some boxes were odd shaped and didn't fit the designed brackets for the square boxes.
Problem Solved: Packers were placed instead and clamps were used instead of ratchet clanks.
Next Steps: Start working on my crossover.

Unit Standard - 7481

Speaker Box - Sketched & Pre-Extruded

Speaker Box Shelled + Section View

Speaker Box - Post-Cut Rear Ports

Speaker Box - Pre-Cut Front Holes

Speaker Box - Pre-Cut Rear Ports

Speaker Box - Post-Cut Front Holes

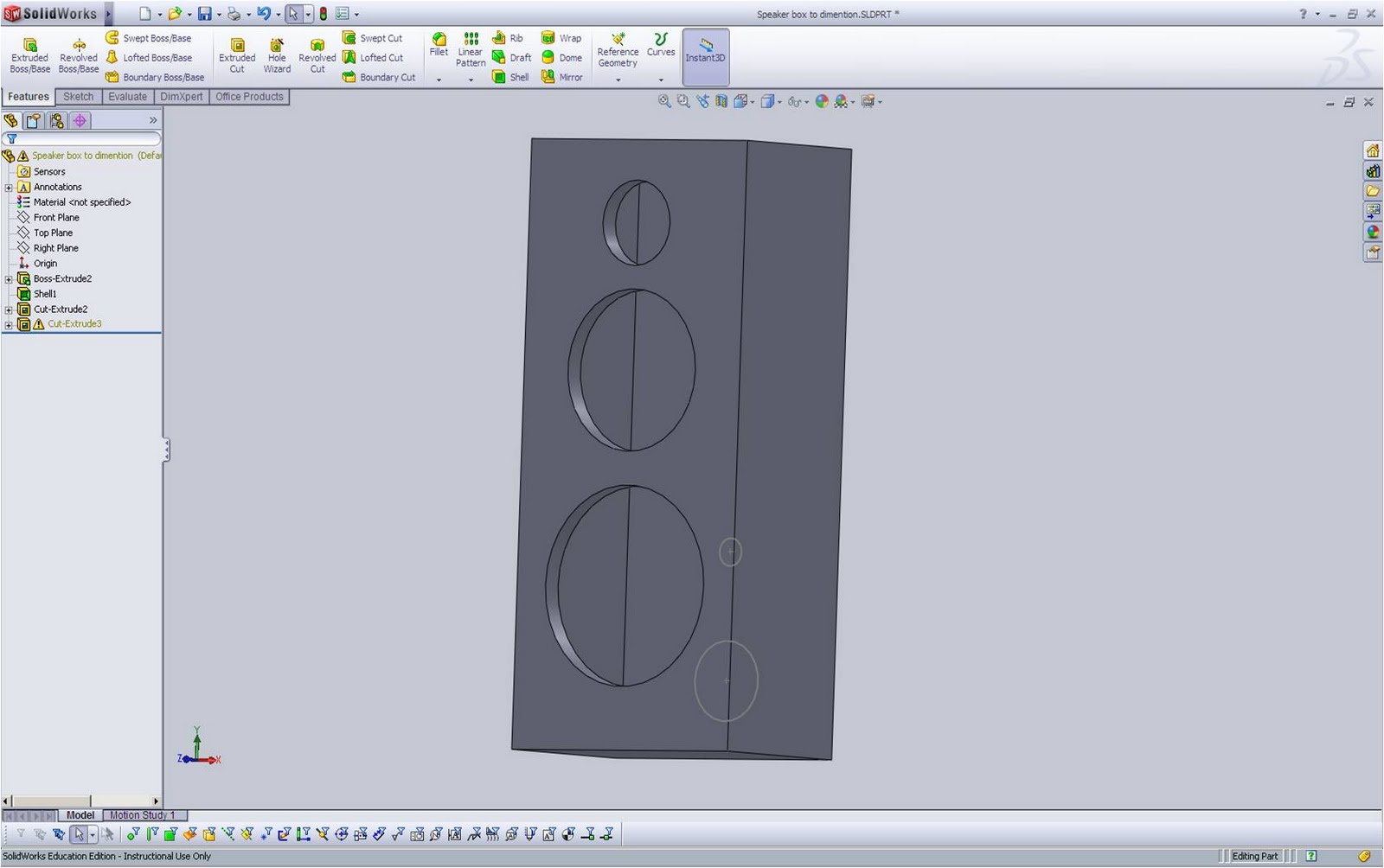

Final Box Unrenderd

Technical Drawing of Speaker

Diary Blog - Term 3 - Week 2

Week 2

This week i finished off cutting out my box, preparing it for gluing. One of the main things i had to do, was to check that the holes would support the speakers and that terminals would fit through the holes. This meant i had to Chisel squares into a side. The edges around the side of the hole had to be filed back to that the speaker would sit in snug and would be flat against the wood.

Diary Blog - Term 3 - Week 1

Week 1

Mr. Mac gave the class a brief over view of what's happening this term, what is expected of us and when the dead lines are.This term we should have the boxes complete, including cut out, foamed, glued, painted and our crossovers finished.
